Machines de soudage industrielles au laser

RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Copper Heat Sink

RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Copper Heat Sink

Nom De Marque:	HanWei
Numéro De Modèle:	HW-DH-ECO-MP
Nombre De Pièces:	1 Set
Prix:	USD / Set
Conditions De Paiement:	T/T
Capacité à Fournir:	2000 Sets / year

Informations détaillées

Description du produit

Informations détaillées

Place of Origin:

Shenzhen, China

Certification:

Laser Power:

Up to 6000W

Laser Beam:

Ring and Spot

Laser Power adjustable:

10~100%

Electrical Input Voltage:

380v 50Hz / 60Hz

Laser Core:

50 um/ 60um

Welding Materials:

Aluminium / Copper / Stainless Steel / Brass / Gold / Silver

Laser power stability:

Cooling Method:

Water Cooling

Laser output frequency:

≤ 20 Khz

Power Consumption:

≤ 30 KW

Packaging Details:

Export Plywood Packing

Supply Ability:

2000 Sets / year

Description du produit

RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Copper Heat Sink

RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Copper Heat Sink Description:

The HW-AMB-ECO laser welding solution represents a cutting-edge laser welding technology, with its core mechanism lying in the simultaneous application of an outer ring laser beam and an inner spot laser beam. This combined approach ensures more even heat distribution and superior welding quality.

Conventional laser welding frequently runs into issues when localized heat on the workpiece becomes excessive, including welding deformation, porosity, and cracks. The HW-AMB, however, acts like a meticulous engineer, refining heat distribution through multi-point heating. This results in balanced thermal spread, reduced welding stress, and workpieces that are far less prone to deformation. The resulting welds are both visually appealing and structurally robust, free from cracks or pores—boasting both exceptional weld strength and a high-end surface finish.

The HW-AMB laser delivers more consistent and steady welding outcomes. The outer ring beam preheats the workpiece and stabilizes the molten pool, while the central spot beam handles deep penetration welding, yielding weld seams without porosity or spatter.

HW-AMB stands for Adjustable Mode Beam. Hanwei Laser has dedicated years to researching and developing the AMB laser beam welding system.

In the HW-AMB-ECO model, the laser beam's core and ring are fixed and non-adjustable, with the AMB laser core measuring 50um-100um.

Minor variations in the light spot occur as the focal length changes. The HW-AMB-ECO laser beam is focused onto the workpiece surface via an optical system, forming outer ring and inner spot laser beams: The outer ring emits low-power density laser energy, primarily functioning to stabilize the molten pool and minimize spatter; the inner spot delivers high-power density laser energy, mainly used for deep penetration welding.

RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Copper Heat Sink Features:

Minimal Spatter – Stabilized weld pools effectively eliminate spatter. Enhanced internal absorption of laser energy within the workpiece’s keyhole and weld pool.
Superior Weld Quality – High-integrity weld seams deliver exceptional strength, free from pores, collapse, cracks, or end-face scratches.
Rapid Welding – Boasts high operational efficiency.
Increased Throughput – Boosts productivity by maximizing uptime and drastically reducing the need for reworking welded components.
Reduced Operating Costs – Benefits include less machine downtime, minimized post-processing, fewer rejected parts, and highly resistant protective glass.
Maximum Application Versatility – Adapts to a wide range of usage scenarios.
User-Friendly Operation & Maintenance – Simple to operate and easy to maintain.
Touchscreen Interface – Digital parameter configuration via the monitor.
Standard English Language – Controller supports customized language options.
Adjustable Laser Beam Size – 0~5mm range, tailored to specific welding needs.
Laser Head Design – Features a streamlined internal structure with high sealing performance.
Durable Optics – Equipped with a drawer-type mirror holder for easy replacement.
High-Performance System – Integrates a laser welding head, laser source, and controller.
Automation Compatibility – Suitable for integration with various automated solutions.
Competitive Pricing – Offers an attractive quotation.

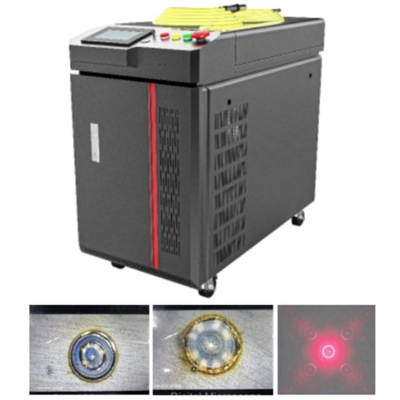

RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Copper Heat Sink 1

RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Copper Heat Sink 2

RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Copper Heat Sink Technical Parameters:

Model	HW-DH-ECO-MP
Laser Power	4000 W / 6000 W
Laser Source	HW-DH-Middle Power / HW-DH-High Power
Laser Beam	Ring and Spot
Laser Core	50um / 100um
Laser Power Stability	≤ 3%
Laser Power adjustable	10%~100%
Rated Input Voltage	380v 50/60Hz
Cooling Method	Water Cooling
Controller system	HW-AMB
Laser Head	HW-AMB-36
Camera and Monitor	Welding process
X axis travel	Option
Y axis travel	Option
Z axis travel	Option
Rotary axis travel	Option
Machine Size	875531849mm
Mechanical Software	HW Laser
Display screen	HW Laser
Working mode	CW / QCW / PWM
Machine Weight	150 Kg / 200 Kg
Ambient Temperature	5~40℃
Ambient Humidity	30%RH~70%RH
Laser output frequency	≤ 20 Khz
Power Consumption	≤ 20Kw / ≤ 30Kw

RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Copper Heat Sink Application:

HW-AMB-ECO laser welding technology achieves efficient, precise, and reliable welding results through its unique laser beam design and energy control. It is an advanced welding technology with broad application prospects.

1. It has broad application prospects in fields such as battery modules packs, lithium batteries of electric vehicles, etc.

RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Copper Heat Sink 4

2. Widely used in welding and processing industries such as automobiles.

RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Copper Heat Sink 7

3. Widely used in special materials welding and processing industries,which itself has high reflectivity for lasers.

4. Widely used in welding and processing industries such as consumer electronics.

5. Widely used in welding and processing industries such as jewelry.

6. Widely used in welding and processing industries such as ships.

7. Widely used in aluminium, copper, brass, gold, silver welding and processing industries.

RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Copper Heat Sink 9

RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Copper Heat Sink Sample:

RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Copper Heat Sink 12

Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser Equipment Co., Ltd. presents a comprehensive range of laser equipment, encompassing both desktop and portable variants. These systems employ advanced fiber, pulsed or continuous-wave, blue laser, diode laser, and hybrid laser technologies, all carefully engineered to meet customers' distinct requirements. Additionally, the company provides customized solutions for specific applications along with training and support services, ensuring clients can fully leverage the capabilities of their laser systems. With branches and subsidiaries spanning Europe, North America, Asia, and the Middle East, Hanwei Laser has established a robust international presence, serving clients across the globe.

Hanwei Laser's primary focus is on the field of laser welding. The company is committed to offering cutting-edge laser welding technology to international laser integration enterprises, with the goal of delivering high-quality welding technology to all integrators. As one of the relatively few national high-tech specialized and innovative enterprises worldwide, it specializes in the research and development, manufacturing, and distribution of a diverse range of welding lasers, laser control systems, laser optical systems, and laser welding processes throughout the entire industrial chain.

RS Series - Ring and Spot Laser Welding Machine - ECO Type for Welding Copper Heat Sink 13
